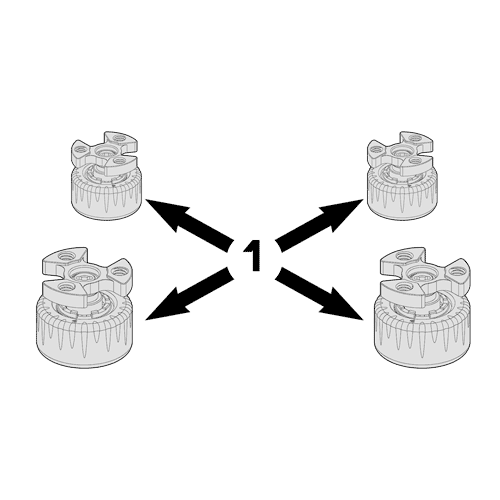

1 Place the Nano footers on the shelf or floor where your equipment will sit. Position the footers out near the edges of the equipment to maximize stability. It is best to have the footers directly contact the underside of the chassis of the eqiupment if possible. If this is not possible, it is acceptable to place the Nano footers under the stock footers. The Nano footers can be used with either side facing up.

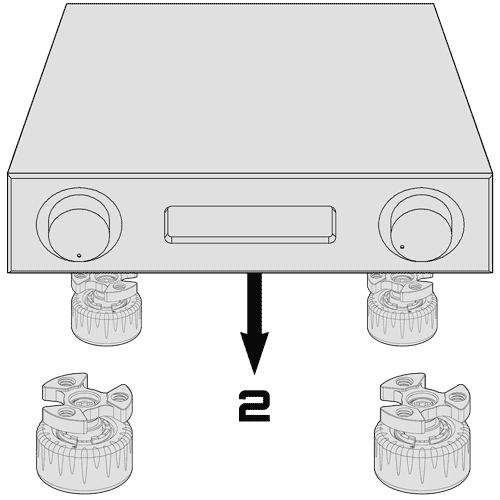

2 Lower the equipment directly down onto the footers. This ensures the footers are all in a centered position under the equipment.

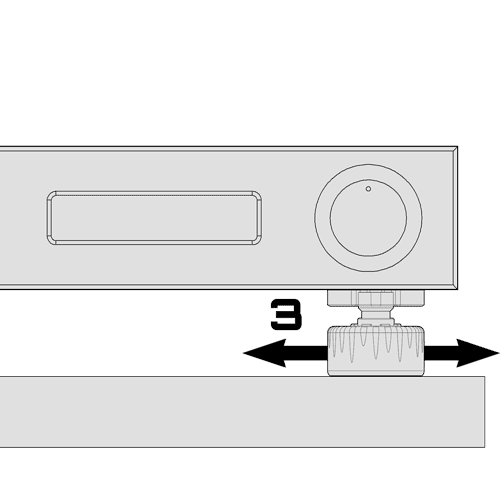

3 In some cases it might be necessary to slide the Nano footers under the equipment one footer at a time. Once in position you can slide the base of each footer around slightly to ensure that the center portion can move in all horizontal directions in response to vibrations.

If you lightly push the equipment and see a small amount of horizontal movement you are all set.
